How To Install Sata M 2 Ssd

Rubber precautions earlier installation:

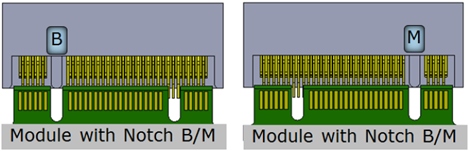

The electric current mainstream pivot type for Grand.two SATA SSD is more often than not the B+M Primal:

It is mainly designed to stand for to the Thousand Central or B Central specifications that can be employed on various platforms.

The post-obit figure merely simulates a possible circumstance.

Please make sure that the platform specifications are consequent with those of the SSD and that the installed direction is correct.

Otherwise, the SSD may exist undetectable, and fifty-fifty in extreme cases, it may burn down-out.

Installation procedures:

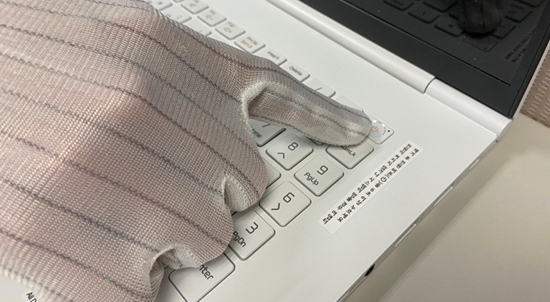

1. Power off the host.

Press the shutdown button of the operating system to plow off the ability of the host correctly.

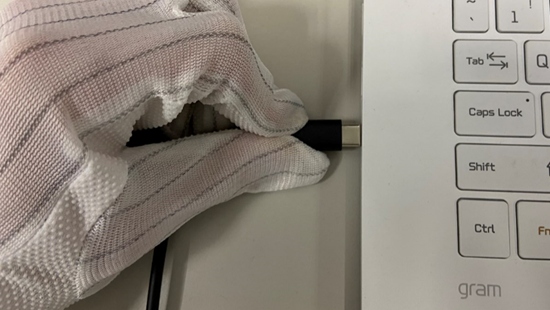

2. Remove the external power source

Remove the external power cord, detachable battery or power supply to ensure that the host is completely powered off.

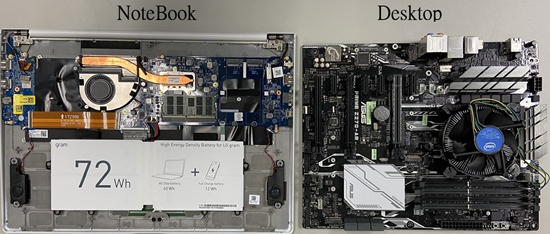

3. Open up the case

How you perform this step may vary according to the model of the host. For specific instructions, delight refer to the host manual.

iv. Grounding

Simply affect the unpainted metal surface to consummate grounding.

Grounding provides an extra layer of protection by protecting the computer from static electricity that innately exists in your body.

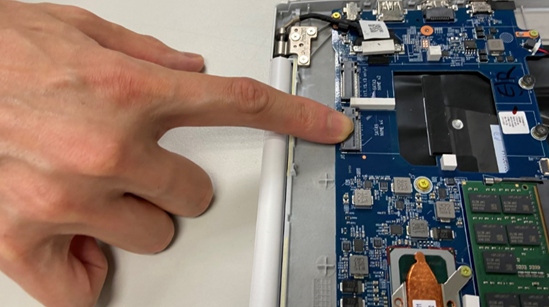

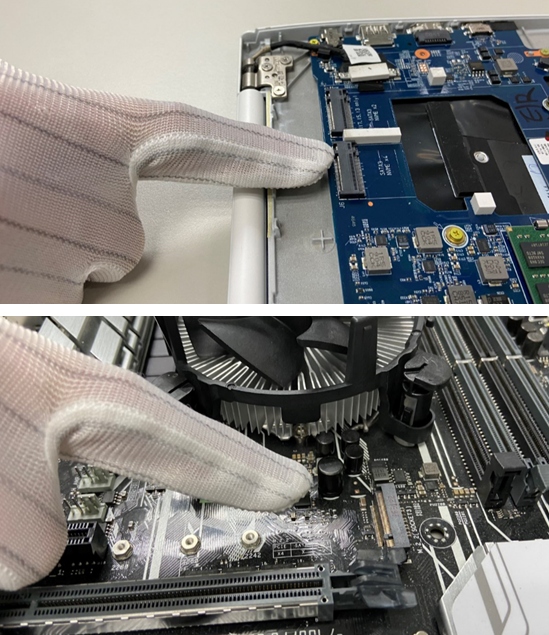

5. Find the slot for M.2 SSD

Since each host model is unlike, delight refer to the host manual for the exact location of the 1000.ii SSD.

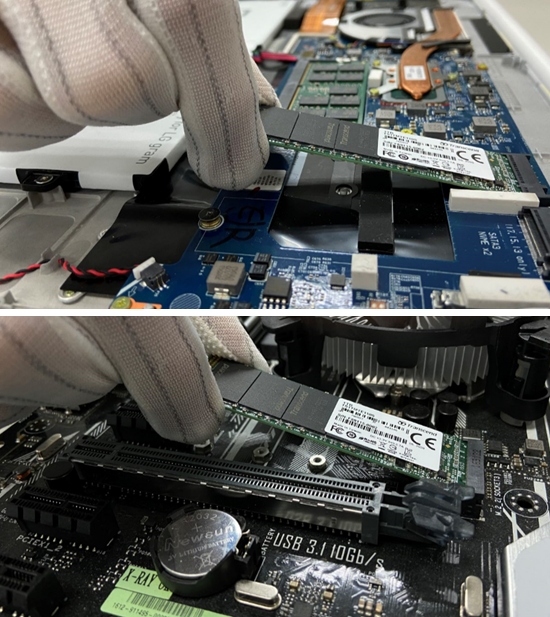

6. Insert the K.two SSD

Depending on the departure of the figurer host, you may need to remove the rut sink or screws inside the reckoner host before installing the Yard.2 SSD.

Advisedly hold the M.2 SSD on both sides and be enlightened not to touch the gold connector pins.

Align the notch on the SSD with that of the PCIe slot, and insert information technology at a 20-degree bending.

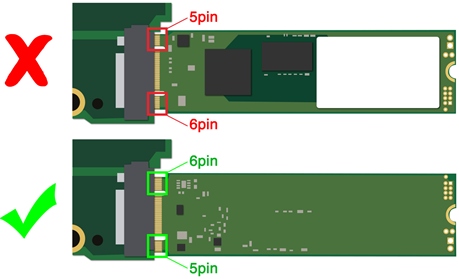

If the groove position of the M.two SSD plug does not lucifer the foolproof protrusion of the slot, please do not insert it forcibly.

To fixate the hard drive, you lot may need to screw the screws into the mounting holes on the motherboard. Do not over-tighten the screws.

7. Reassemble the system

 Afterwards the M.2 SSD is firmly inserted, resume the other parts to their original positions and reconnect the external power supply device that may have been removed.

8. Plow on the computer

Press the power-on button and the M.2 SSD shall role usually.
